| 원래 장소: | Jiangsu.China |
|---|---|
| 브랜드 이름: | Dagyee |
| 인증: | CE |
| 모델 번호: | DYG-5F |
| 최소 주문 수량: | 1 PC |
| 가격: | negotiable |
| 포장 세부 사항: | 나무상자, 표준 컨테이너, 고객들은 요구조건을 상세화할 수 있습니다 |
| 배달 시간: | 15 일 일 |
| 지불 조건: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램 |
| 공급 능력: | 200SET |
| 상태: | 새롭습니다 | 재료: | 통 또는 OEM |
|---|---|---|---|
| 접속 형태: | 클램프 /BSP 여성과 함께 | 기능: | 거르는 중단된 사정 |
| 사이즈: | 맞춤화됩니다 | 길이: | 10"/20"/30"/40" |
| 색: | 은 | 애플리케이션: | 여과 |
| 강조하다: | 0.1 um SS 물 필터 Housing,200um SS 물 필터 Housing,0.1 마이크론 필터 하우징 |
||

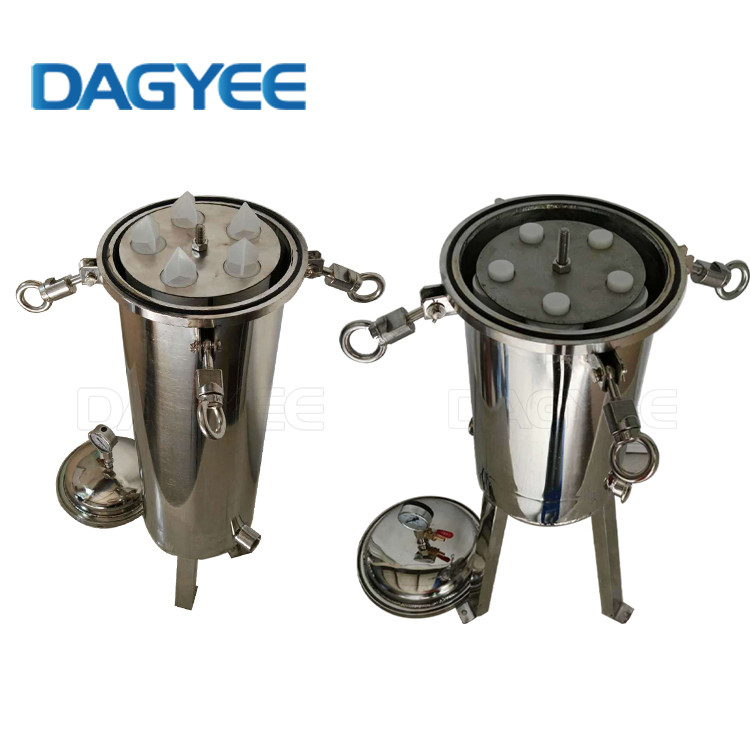

DYG-5F 304 316 Industrial PP String Wound 5 Cartridges Filter Housings 10'' 20'' 30'' 40'' With Flange
Cartridge filter is mainly composed by the filter housings, filter cartridges and other components, and the filter housings materials is mostly made of R304 stainless steel, if it’s used in the acid and other special occasions,it will be made by R316 stainless steel. It an be divided into the flange and clamp, and flanged housing is mainly used in the occasion of larger flow filtration. The filter is mainly made by PP cotton, it can also be made by wound filter or activated carbon filter on some occasions. The number of filter may vary from 1 to dozens, primarily be determined from the water flow rate.
5 Cartridges Filter Housings With Flange Specification
| Model | DYG-5F |
| Material | SUS304 SUS316 |
| Applicable Filter Cartridges | Industrial PP;String Wound;304;316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | With a clamp /BSP female |
| Surface treatment | Mirror reflection |
| Model |
Max. Flow Rate (m3 /h) |
Max. Operating Conditions (bar/°C) |
Filter specifications |
Inlet/ Outlet |
Height mm |
Max. Cartridge Outside Diameter |
| DYG-5F-10'' | 2.5 M3/H | 0-1.0MPa | Ø65*250 | 3/4'' | 550 | Ø219 |
| DYG-5F-20'' | 5 M3/H | 0-1.0MPa | Ø65*500 | 1'' | 850 | Ø219 |
| DYG-5F-30'' | 7.5 M3/H | 0-1.0MPa | Ø65*750 | 1 1/2'' | 1100 | Ø219 |
| DYG-5F-40'' | 10 M3/H | 0-1.0MPa | Ø65*1000 | 2'' | 1390 | Ø219 |
5 Cartridges Filter Housings 10'' With Flange Specification
| Model | DYG-5F-10'' |
| Material | SUS304 SUS316 |
| Applicable Filter Cartridges | Industrial PP;String Wound;304;316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | With a clamp /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø219mm*550mm |
| Max. Flow Rate (m3 /h) | 2.5 |
| Max. Operating Conditions (bar/°C) | 10/150 |
| Inlet/Outlet (BSP female) | 3/4'' |
| Length of Filter Cartridge | 10'' |
| No. of Filter Cartridges | 5 |
| Max. Cartridge Outside Diameter(mm) | Ø65 |
5 Cartridges Filter Housings 20'' With Flange Specification
| Model | DYG-5F-20'' |
| Material | SUS304 SUS316 |
| Applicable Filter Cartridges | Industrial PP;String Wound;304;316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | With a clamp /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø219mm*830mm |
| Max. Flow Rate (m3 /h) | 5 |
| Max. Operating Conditions (bar/°C) | 10/150 |
| Inlet/Outlet (BSP female) | 1'' |
| Length of Filter Cartridge | 20'' |
| No. of Filter Cartridges | 5 |
| Max. Cartridge Outside Diameter(mm) | Ø65 |
5 Cartridges Filter Housings 30'' With Flange Specification
| Model | DYG-5F-30'' |
| Material | SUS304 SUS316 |
| Applicable Filter Cartridges | Industrial PP;String Wound;304;316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | With a clamp /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø219mm*1100mm |
| Max. Flow Rate (m3 /h) | 7.5 |
| Max. Operating Conditions (bar/°C) | 10/150 |
| Inlet/Outlet (BSP female) | 1 1/2'' |
| Length of Filter Cartridge | 30'' |
| No. of Filter Cartridges | 5 |
| Max. Cartridge Outside Diameter(mm) | Ø65 |
5 Cartridges Filter Housings 40'' With Flange Specification
| Model | DYG-5F-40'' |
| Material | SUS304 SUS316 |
| Applicable Filter Cartridges | Industrial PP;String Wound;304;316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | With a clamp /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø219mm*1390mm |
| Max. Flow Rate (m3 /h) | 10 |
| Max. Operating Conditions (bar/°C) | 10/150 |
| Inlet/Outlet (BSP female) | 2'' |
| Length of Filter Cartridge | 40'' |
| No. of Filter Cartridges | 5 |
| Max. Cartridge Outside Diameter(mm) | Ø65 |
DAGYEE Cartridge Housing Features
DAGYEE Cartridge Housing Shell Details
